• Meets requirements of ASTM D792 density test.
    • ISO/TS 16949 & ISO 9001 Compliant.
    • RoHS Compliant.
    • Continuous Operating Temperature: -40dC (-40dF) to 93dC (200dF).
    • Flexibility: Excellent.
    • Flame-Retardant: No.
    • Material: Polyethylene.
    • Use 5024F tool to easily pull wires & cables through split loom

Item # Description/Size
4304-3F
1/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 3ft
4304-6F
1/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 6ft
4304F
1/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 14ft
4304-50
1/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 50ft
4304C
1/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
4304
1/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 3200ft
4304-9F
1/4" White Split Wire Loom Flex-Guard Convoluted Tubing, 14ft
4304-9C
1/4" White Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
4304-9
1/4" White Split Wire Loom Flex-Guard Convoluted Tubing, 3200ft
5304-2F
1/4" Red Split Wire Loom Flex-Guard Convoluted Tubing, 14ft
5304-2C
1/4" Red Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
5304-2
1/4" Red Split Wire Loom Flex-Guard Convoluted Tubing, 3200ft
5304-4F
1/4" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 14ft
5304-4C
1/4" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
5304-4
1/4" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 3200ft
5304-6F
1/4" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 14ft
5304-6C
1/4" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
5304-6
1/4" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 3200ft

Split Loom although lightweight, is a bulky item that is very expensive to ship. We're sorry, but the bulk 3200ft boxes incur a $10 shipping surcharge per item. This will be included in the final shipping cost of your order. We apologize for this and are working with our shipping providers to find a solution that will allow us to remove this extra charge. Not available for AK or HI customers unless shipped collect.

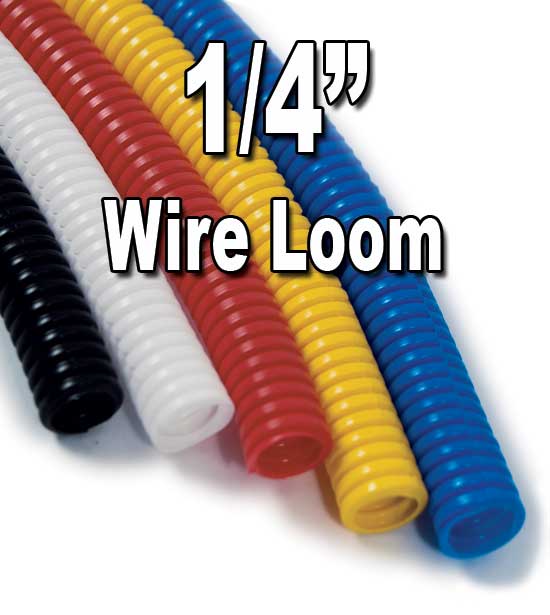

JT&T’s Polyethylene Flex-Guard Convoluted Tubing (Split Loom) is designed to provide a flexible, crush-resistant protection for wiring assemblies. The tubing is a corrugated tube used to provide protection to a wire harness or any other product that may be subject to abnormal conditions, such as continuous abrasion & vibration wear, puncturing, water, snow, ice, salt & UV rays. Flexible convoluted tubing/conduit is manufactured from a blend of low density polyethylene & linear low density polyethylene resins. The convoluted surface enhances the appearance of your product by providing a uniform tailored finish. The split seam feature allows wires to be inserted easily, eliminating the costly time needed to apply tape, braid or loom. Since the seam is not permanently sealed, the costs of repair or service are also reduced. Temperature rating from -40°C (-40°F) to 93°C (200°F).
