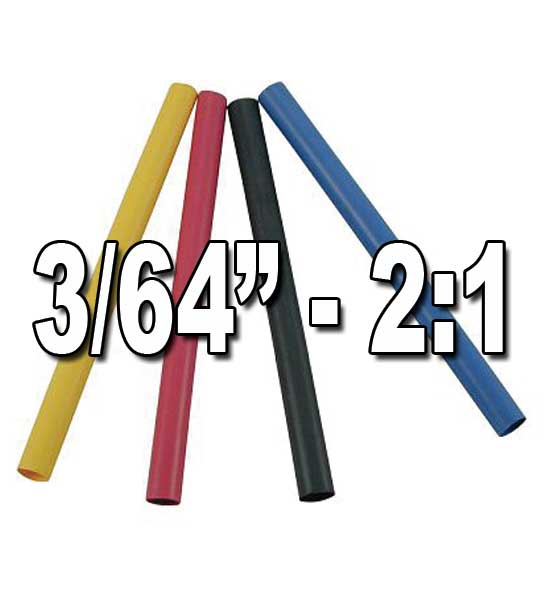

JT&T's 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications.
ULrecognized, CSA certified, RoHS compliant & ABS approved.Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3. It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects.
Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation, lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify &color-code electrical connections & wire bundles.
Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275 deg;F) & ;up to 300deg;C (572deg;F) for short durations.
Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121degC (250deg;F).
NOTE:Clear tubing is NOT flame retardant or UL listed.
Key Points:
- Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
- Meets requirements of AMS-3636 & AMS-3637.
- RoHS Compliant.
- UL Recognized: File E-39100.
- CSA Certified: CSA LR-38227.
- ABS Approved.
- Continuous Operating Temperature: -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations.
- Shrink Temperature: 121°C (250°F).
- Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
- Voltage Rating: 600Volts Maximum.
- Cross-Linked Polyolefin Heat Shrink Tubing.
- Single/Thin-Wall.
- Flame-Retardant.
- Flammability Rating: UL224 / VW-1.
- NOTE: Clear Tubing is NOT flame retardant or UL listed.
- See "Heat Shrink Tubing-Tools" for torches or heat gun to shrink & seal heat shrink tubing.
- Note: 4' sticks may be rolled or folded for shipping
