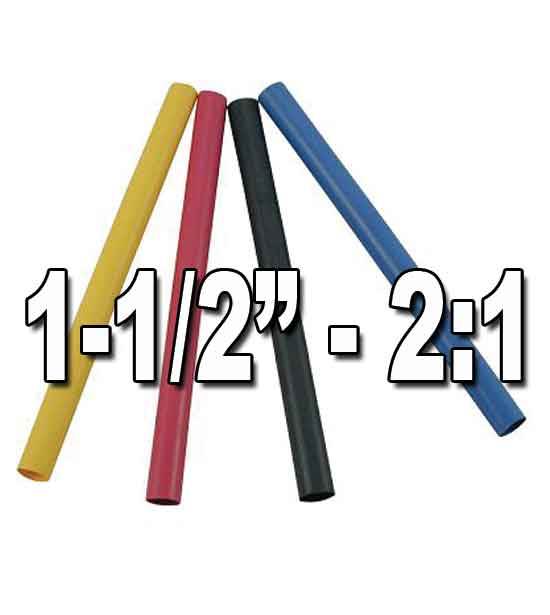

1 1/2" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
Meets requirements of AMS-3636 & AMS-3637.
RoHS Compliant.
UL Recognized: File E-39100.
CSA Certified: CSA LR-38227.
ABS Approved.
Continuous Operating Temperature: -55C (-67F) to 135C (275F) & up to 300C (572F) for short durations.
Shrink Temperature: 121C (250F).
Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
Voltage Rating: 600Volts Maximum. Cross-Linked Polyolefin Heat Shrink Tubing. Single/Thin-Wall.
Flame-Retardant.
Flammability Rating: UL224 / VW-1.
NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
Note: 4' sticks may be rolled or folded for shipping

Item #	Description/Size
J-8510	1 1/2" 2:1 Black Heat Shrink Tubing, 4ft Stick
J-8520	1 1/2" 2:1 Clear Heat Shrink Tubing, 4ft Stick
J-8530	1 1/2" 2:1 Red Heat Shrink Tubing, 4ft Stick
J-8540	1 1/2" 2:1 Yellow Heat Shrink Tubing, 4ft Stick
J-8560	1 1/2" 2:1 White Heat Shrink Tubing, 4ft Stick
J-8550	1 1/2" 2:1 Blue Heat Shrink Tubing, 4ft Stick
J-8590	1 1/2" 2:1 Green Heat Shrink Tubing, 4ft Stick

JT&T’s 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications. UL recognized, CSA certified, RoHS compliant & ABS approved. Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3.

It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects. Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation & lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify & color-code electrical connections & wire bundles.

Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations. Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121°C (250°F). NOTE: Clear tubing is NOT flame retardant or UL listed.
