Item # Description/Size
2363SJ
22-18 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Male, Qty 3
2363SF
22-18 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Male, Qty 15
2362SJ
22-18 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Female, Qty 3
2362SF
22-18 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Female, Qty 15
2366SJ
16-14 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Male, Qty 3
2366SF
16-14 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Male, Qty 15
2365SJ
16-14 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Female, Qty 3
2365SF
16-14 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Female, Qty 15
2368SJ
12-10 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Male, Qty 3
2368SF
12-10 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Male, Qty 15
2367SJ
12-10 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Female, Qty 3
2367SF
12-10 AWG Heat Shrink, Solder Seal, Push On Disconnects, .250 Tab, Female, Qty 15

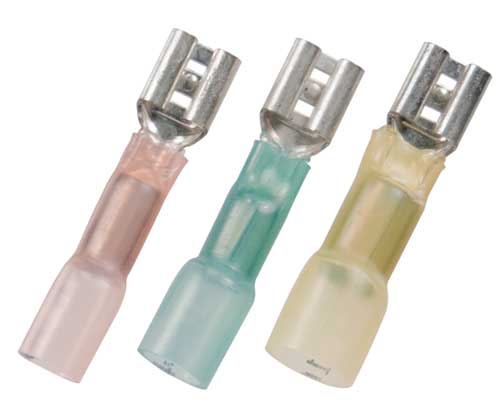

Heat Shrink Solder Seal terminals feature a band of low melt solder in the middle of heat shrink. They allow you to solder and shrink in one step. Note these terminals do not crimp on and are solder only. If you would like the crimp as well, consider the Crimp & Solder Seal Terminals.

JT&T's Heat Shrink Terminals have been adhesive-lined to seal the connection. The translucent tubing allows for visual inspection. Terminals provide maximum contact and tensile strength after crimping. JT&T's terminals are constructed from pure copper (Alloy 110), annealed & electro tin plated. Electro Tin plating provides exceptional corrosion resistance. Insulator sleeve is color-coded for wire size and identification. JT&T Products offers a full line of terminals made from vinyl (P.V.C), nylon and heat shrink.
