• Meets requirements of ASTM D792 density test.
  • ISO/TS 16949 & ISO 9001 Compliant.
  • RoHS Compliant.
  • Continuous Operating Temperature: -40dC (-40dF) to 93dC (200dF).
  • Flexibility: Excellent.
  • Flame-Retardant: No.
  • Material: Polyethylene.
  • Use 5024F tool to easily pull wires & cables through split loom

Item # Description/Size
4307F
3/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 5ft
4307-50
3/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 50ft
4307C
3/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
4307
3/4" Black Split Wire Loom Flex-Guard Convoluted Tubing, 600ft
4307-9F
3/4" White Split Wire Loom Flex-Guard Convoluted Tubing, 5ft
4307-9C
3/4" White Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
4307-9
3/4" White Split Wire Loom Flex-Guard Convoluted Tubing, 550ft
5307-2F
3/4" Red Split Wire Loom Flex-Guard Convoluted Tubing, 5ft
5307-2C
3/4" Red Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
5307-2
3/4" Red Split Wire Loom Flex-Guard Convoluted Tubing, 550ft
5307-4F
3/4" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 5ft
5307-4C
3/4" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
5307-4
3/4" Yellow Split Wire Loom Flex-Guard Convoluted Tubing, 550ft
5307-6F
3/4" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 5ft
5307-6C
3/4" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 100ft
5307-6
3/4" Blue Split Wire Loom Flex-Guard Convoluted Tubing, 550ft

Split Loom although lightweight, is a bulky item that is very expensive to ship and are not included in our normal free shipping. We're sorry, but 100ft rolls incur a $10 shipping surcharge and bulk 550/600 ft rolls incur a $20 shipping surcharge per item. This will be included in the final shipping cost of your order. Not available for AK or HI customers unless shipped collect.

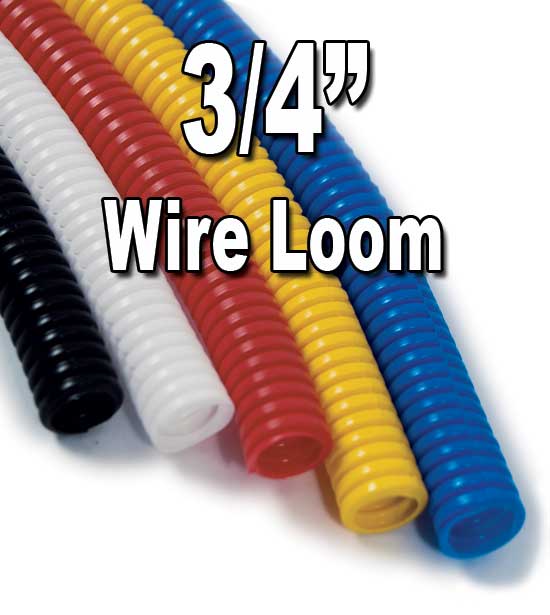

JT&T’s Polyethylene Flex-Guard Convoluted Tubing (Split Loom) is designed to provide a flexible, crush-resistant protection for wiring assemblies. The tubing is a corrugated tube used to provide protection to a wire harness or any other product that may be subject to abnormal conditions, such as continuous abrasion & vibration wear, puncturing, water, snow, ice, salt & UV rays. Flexible convoluted tubing/conduit is manufactured from a blend of low density polyethylene & linear low density polyethylene resins. The convoluted surface enhances the appearance of your product by providing a uniform tailored finish. The split seam feature allows wires to be inserted easily, eliminating the costly time needed to apply tape, braid or loom. Since the seam is not permanently sealed, the costs of repair or service are also reduced. Temperature rating from -40°C (-40°F) to 93°C (200°F).
