3/8" 2:1 Single/Thin Wall Heat Shrink Polyolefin Tubing

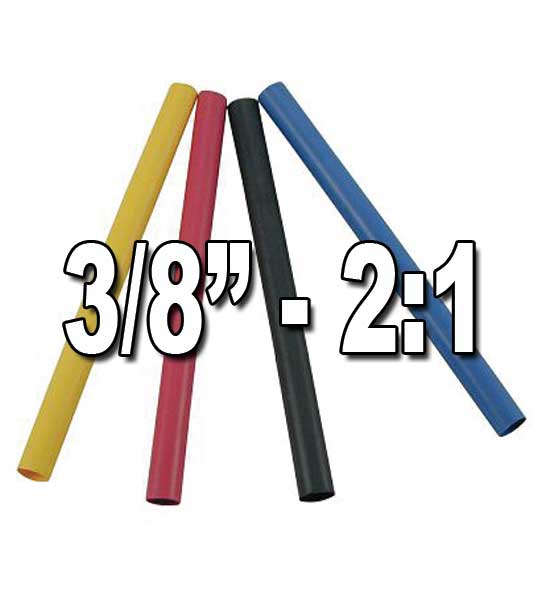

3/8” (.375”) 9.52mm 2 to 1 Single/Thin-Wall Polyolefin Heat Shrink Tubing

Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Class 1, Class 2 (Clear), Class 3.
Meets requirements of AMS-3636 & AMS-3637.
RoHS Compliant.
UL Recognized: File E-39100.
CSA Certified: CSA LR-38227.
ABS Approved.
Continuous Operating Temperature: -55C (-67F) to 135C (275F) & up to 300C (572F) for short durations.
Shrink Temperature: 121C (250F).
Shrink Ratio: 2 to 1 (shrinks to 1/2 its original diameter).
Voltage Rating: 600Volts Maximum. Cross-Linked Polyolefin Heat Shrink Tubing. Single/Thin-Wall.
Flame-Retardant.
Flammability Rating: UL224 / VW-1.
NOTE: Clear tubing is NOT flame retardant/rated or UL listed.
Note: 4' sticks may be rolled or folded for shipping

Item #	Description/Size
4006H	3/8" 2:1 Black Heat Shrink Tubing, 4" pieces, qty 6
4026H	3/8" 2:1 Red Heat Shrink Tubing, 4" pieces, qty 6
4006-0F	3/8" 2:1 Black Heat Shrink Tubing, 6" pieces, qty 8
4006-1F	3/8" 2:1 Clear Heat Shrink Tubing, 6" pieces, qty 8
4006-2F	3/8" 2:1 Red Heat Shrink Tubing, 6" pieces, qty 8
4006-5F	3/8" 2:1 Green Heat Shrink Tubing, 6" pieces, qty 8
4006-6F	3/8" 2:1 Blue Heat Shrink Tubing, 6" pieces, qty 8
4006-7F	3/8" 2:1 Yellow Heat Shrink Tubing, 6" pieces, qty 8
4006-9F	3/8" 2:1 White Heat Shrink Tubing, 6" pieces, qty 8
J-8506	3/8" 2:1 Black Heat Shrink Tubing, 4 ft stick, qty 1
J-8516	3/8" 2:1 Clear Heat Shrink Tubing, 4 ft stick, qty 1
J-8526	3/8" 2:1 Red Heat Shrink Tubing, 4 ft stick, qty 1
J-8536	3/8" 2:1 Yellow Heat Shrink Tubing, 4 ft stick, qty 1
J-8546	3/8" 2:1 Blue Heat Shrink Tubing, 4 ft stick, qty 1
J-8556	3/8" 2:1 White Heat Shrink Tubing, 4 ft stick, qty 1
J-8586	3/8" 2:1 Green Heat Shrink Tubing, 4 ft stick, qty 1
J-8806	3/8" 2:1 Black Heat Shrink Tubing, 35ft Spool
J-8816	3/8" 2:1 Clear Heat Shrink Tubing, 35ft Spool
J-8826	3/8" 2:1 Red Heat Shrink Tubing, 35ft Spool
J-8836	3/8" 2:1 Yellow Heat Shrink Tubing, 35ft Spool
J-8846	3/8" 2:1 Blue Heat Shrink Tubing, 35ft Spool
J-8856	3/8" 2:1 White Heat Shrink Tubing, 35ft Spool
J-8886	3/8" 2:1 Green Heat Shrink Tubing, 35ft Spool
4059H	3/8" 2:1 Heat Shrink Tubing, 4" pieces, Assorted Colors, Qty 5
4006S-5DOT	3/8" 2:1 Green Heat Shrink Tubing, 200ft Spool
4006S-1DOT	3/8" 2:1 Clear Heat Shrink Tubing, 200ft Spool
4006S-2DOT	3/8" 2:1 Red Heat Shrink Tubing, 200ft Spool
4006S-7DOT	3/8" 2:1 Yellow Heat Shrink Tubing, 200ft Spool
4006S-6DOT	3/8" 2:1 Blue Heat Shrink Tubing, 200ft Spool
4006S-0DOT	3/8" 2:1 Black Heat Shrink Tubing, 200ft Spool
4006S-9DOT	3/8" 2:1 White Heat Shrink Tubing, 200ft Spool

JT&T’s 2 to 1 Single/Thin Wall Cross-Linked Polyolefin Heat Shrink Tubing is irradiated, flexible & intended for general purpose applications requiring recognition by military & industrial specifications. UL recognized, CSA certified, RoHS compliant & ABS approved. Meets requirements of SAE-AMS-DTL-23053/5 (formerly MIL-I-23053/5, MIL-DTL-23053/5), Classes 1, 2 (Clear), 3.

It is single-wall, flame-retardant, mechanically strong & will not melt or split when shrunk over irregularly-shaped objects. Applications include insulation, jacketing wire bundles, mechanical protection, physical/electrical protection of components, strain relief, solder insulation & lightweight harnessing where superior abrasion resistance is a plus. Also, used to identify & color-code electrical connections & wire bundles.

Temperature rating for continuous operation from -55°C (-67°F) to 135°C (275°F) & up to 300°C (572°F) for short durations. Shrink Ratio is 2 to 1 (shrinks to 1/2 its original diameter). Shrink Temperature is 121°C (250°F). NOTE: Clear tubing is NOT flame retardant or UL listed.
