• 20 AMP @ 12 Volt On/Off/On S.P.D.T. Rocker Switches -
  • 20 AMP @ 12 Volt On/Off/On S.P.D.T. Rocker Switches -
  • 20 AMP @ 12 Volt On/Off/On S.P.D.T. Rocker Switches -
  • 20 AMP @ 12 Volt On/Off/On S.P.D.T. Rocker Switches -
New!

Item # Description/Size
2722F
20 AMP @ 12 Volt S.P.D.T. On/Off/On Rocker Switch, 4 pin, RED LED, 1 pc
2720F
20 AMP @ 12 Volt S.P.D.T. On/Off/On Rocker Switch, 3 Pin, Black, non-illuminated, 1 pc
2736F
Switch Label Kit, for RV, Marine, and 4x4 Applications - 120 labels
2733F
22mm x 38mm Rocker Switch Actuator / Panel removal tool

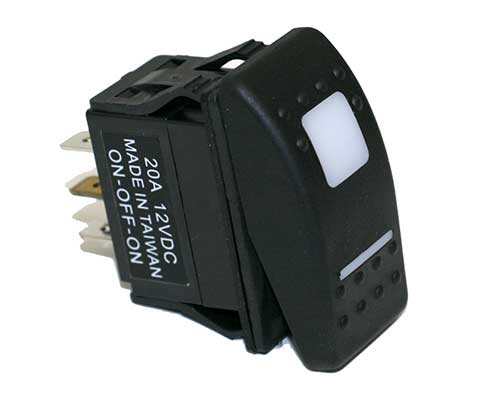

Marine rated, sealed IP68 Waterproof, heavy-duty rocker switch - 20A @12VDC or 15A @24VDC, .250 tabs

Acutators/lenses are removeable

SPDT On/Off/On, LED illuminated. Off in middle position, can be clicked (and will stay) to 'on' in two directions.

"Pin" in product name indicates the number of terminals on the back of the switch. Note however, the pin count is not the best way to determine if a switch is interchangeable with another.

Labels and panels available

Hole size .83" x 1.46" (22x38mm)
